Description

Experience versatile power solutions with the Lux Power 5kw Single Phase Hybrid inverter. Directly supply your home appliances using solar panels and the battery bank. This pure sine wave inverter includes a built-in battery charger for off-grid applications, ensuring reliable performance.

DC Input:

• Maximum Power: 8000W
• Nominal Voltage: 360VDC
• Voltage Range: 100VDC-550VDC
• MPPT Range: 120VDC-500VDC
• Start Voltage: 140VDC
• MPP Trackers: 2
• Maximum Current: 12.5A / 12.5A

Battery Input / Output:

• Compatible Types: Lithium-ion / Lead-Acid
• Nominal Voltage: 48VDC
• Voltage Range: 40VDC – 60VDC
• Max Charge / Discharge Current: 80A / 80A
• Max Charge / Discharge Power: 5000W / 5000W
• Charging Curve: 3 Stages

AC Input / Output:

• Nominal Output Power: 5000W
• Nominal Output Current: 25A
• Nominal Voltage: 230VAC (180VAC-270VAC)
• Nominal Frequency: 50Hz / 60Hz (45Hz-55Hz / 55Hz-65Hz)
• Power Factor: >0.99 @ Rated Power; Adjustable from 0.8 Lagging to 0.8 Leading

Environment Limit:

• Ingress Protection: IP65
• Relative Humidity: 0% to 100%
• Operating Temperature Range: -25°C to +60°C
• Operating Altitude: <2000m>

Dimensions (Estimated):

• Compact Design: Approximately 45 cm x 30 cm x 15 cm
• Note: These are estimated dimensions for a 5kW inverter, and precise information should be obtained from the manufacturer’s documentation or by contacting the manufacturer directly.
• Weight: Approximately 20kg

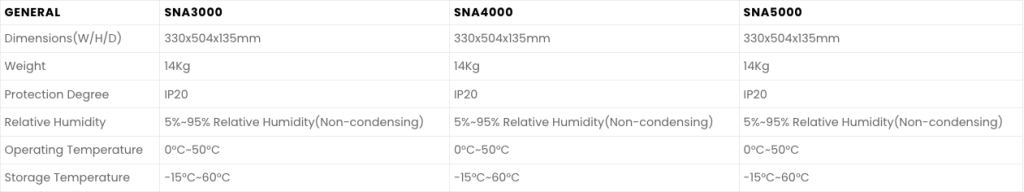

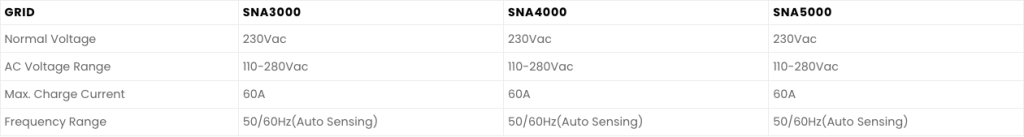

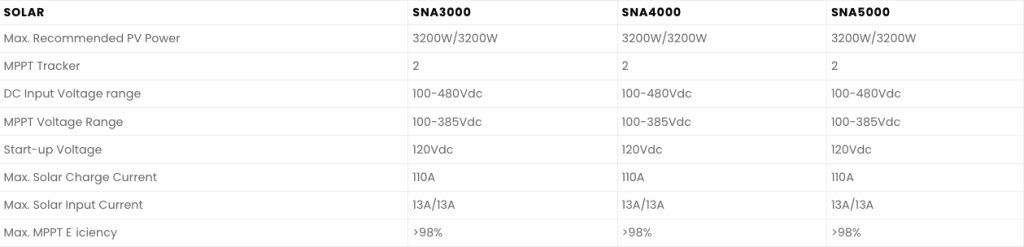

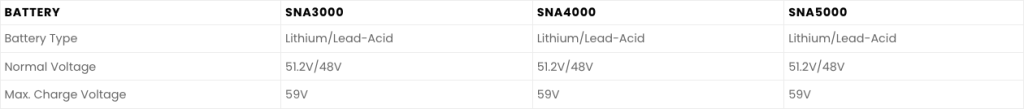

Specifications:
