Description

Product Description:

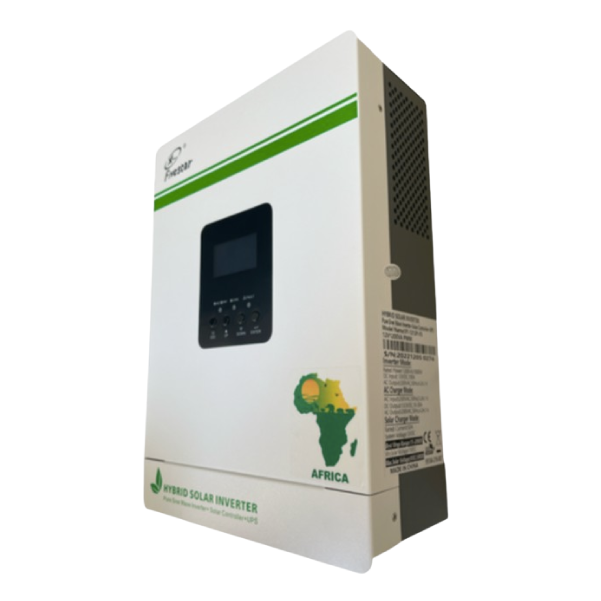

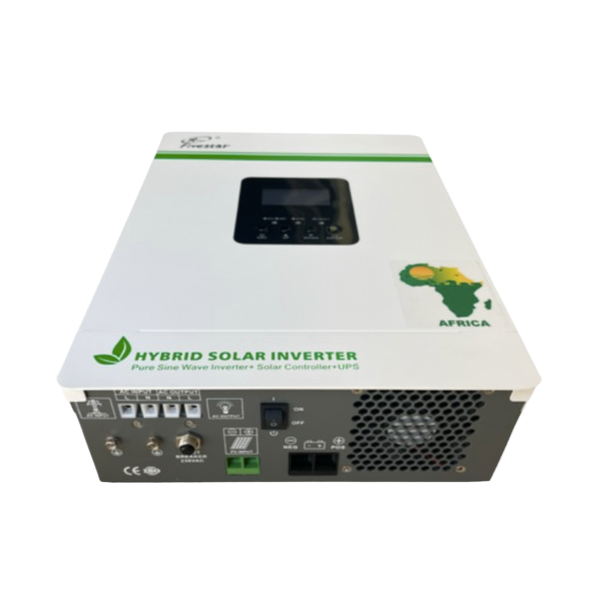

Elevate your off-grid power system with the Fivestar 1.2KVA 1000W PWM 12V Solar Hybrid Inverter. This durable hybrid off-grid inverter offers a robust solution for your energy needs. With a 12V DC input capable of handling up to 100A and a pure sine wave inverter, it ensures efficient and reliable power conversion. The built-in solar charge controller, operating in PWM mode, maximiSes solar energy utiliSation, with a rated current of 50A and compatibility with solar voltages ranging from 15VDC to 50VDC. Additionally, its AC charger, with a voltage of 230VDC and a current range of 10-60A, ensures seamless battery charging. Equipped with overload and short circuit protection, smart battery charger design, and a cold start function, this inverter prioritiSes safety and performance. Its RoHS compliance further underscores its quality and reliability, making it an ideal choice for off-grid applications

Product Specifications:

Durable hybrid off grid inverter

-12V
-1200VA / 1000w

DC input: 12vdc 100a
AC output: 230vac, 50hz

AC Charger: 230vdc 10-60a
DC Output – 13.5vdc, 10-20a

Solar charger mode:

Rated current 50a
Minimum solar voltage: 15vdc
Best Vmp range: 15-20vdc
Max solar voltage: 50Vdc

-Pure sine wave inverter
-Built-in solar charge controller
-PWM

Compatible with mains voltage and can charge batteries.
-Auto restart while AC is recovering
-Overload and short circuit protection
-Smart battery charger design for optimised battery performance
-Cold start function
-RoHS compliant

What’s in the box
1 x Fivestar 1.2KVA 1000w PWM 12V Solar Hybrid Inverter
1 x User manual
