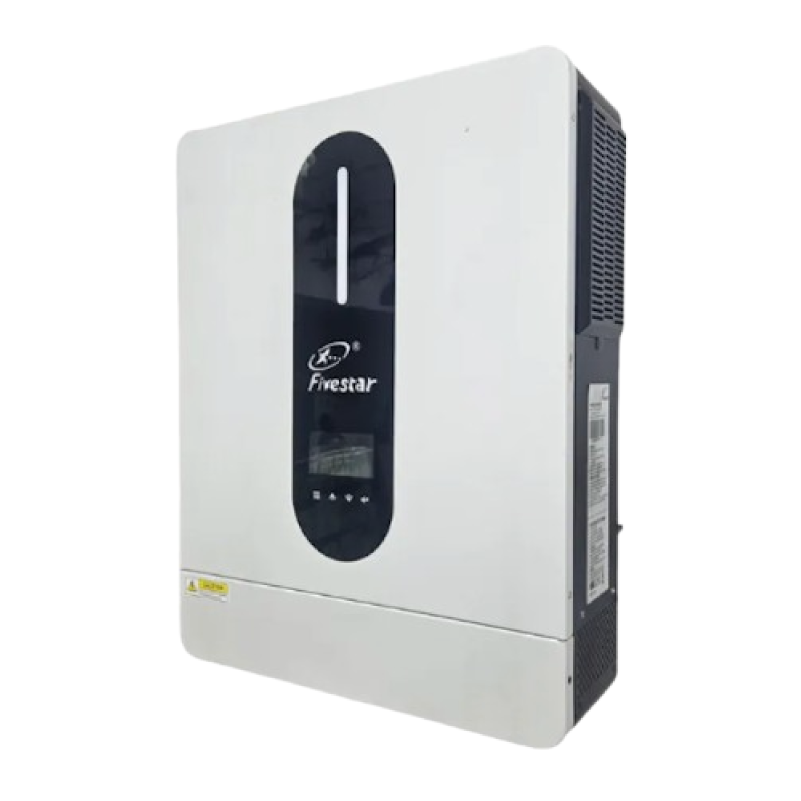

Fivestar 10kW MPPT WiFi Inverter

Fivestar 10kW MPPT Wifi Inverter

The Fivestar 12KVA 10KW MPPT Wifi Hybrid Dual PV Input 48V Inverter is a high-performance solar energy solution offering exceptional efficiency and versatility. With advanced features such as dual PV inputs, WIFI connectivity, and robust grid/AC output, it ensures reliable power generation and management for residential and commercial applications.

R15,850.00 Incl. VAT

Fivestar 10kW MPPT WiFi Inverter

Fivestar 10kW MPPT Wifi Inverter

The Fivestar 12KVA 10KW MPPT Wifi Hybrid Dual PV Input 48V Inverter is a high-performance solar energy solution offering exceptional efficiency and versatility. With advanced features such as dual PV inputs, WIFI connectivity, and robust grid/AC output, it ensures reliable power generation and management for residential and commercial applications.

R15,850.00 Incl. VAT

Description

The Fivestar 12KVA 10KW MPPT Wifi Hybrid Dual PV Input 48V Inverter represents a pinnacle in solar energy solutions, offering exceptional performance, versatility, and efficiency. Designed to meet the demands of high-quality solar energy systems, it ensures reliable power generation and management. With features such as dual PV inputs, MPPT technology, and WIFI connectivity, it provides advanced functionality for optimal energy utilization. Its grid/AC output features ensure seamless integration with existing power systems, while its two load outputs cater to diverse energy needs. With a nominal output voltage of 220/230/240Vac and a maximum solar charging current of 160A, it offers robust performance in various applications. Backed by a 1-year warranty, it stands as a reliable and durable solution for your solar energy needs.

Specifications:

  • PV INPUT:
    • Nominal Operating Voltage: 360Vdc
    • Vmax PV: 500Vdc
    • PV Input Voltage Range: 90-450Vdc
    • Imax PV: 27.0A
    • Full Load MPPT Range: 360-450Vdc
    • Rated Power: 10000W/12000VA
    • Maximum Solar Charging Current: 160A
  • GRID/AC OUTPUT:
    • Nominal Output Voltage: 220/230/240Vac
    • Feed-in Grid Voltage Range: 195-253Vac
    • Feed-in Grid Frequency Range: 49-51+1Hz
    • Nominal Output Current: 35.6A
    • Power Factor Range: >0.99
    • Maximum Conversion Efficiency (DC/AC): 98%
    • Nominal Operating Frequency: 50/60Hz
  • TWO LOAD OUTPUT POWER:
    • Full Load: 10000W
    • Maximum Main Load: 10000W
    • Maximum Second Load: 3333W
    • Main Load Cut Off Voltage: 44VDC
    • Main Load Return Voltage: 52VDC
  • AC INPUT:
    • Nominal Operating Voltage: 230Vac
    • Maximum Input Current: 40A
    • Nominal Operating Frequency: 50/60Hz
    • Surge Power: 20000VA
    • Maximum AC Charging Current: 140A
  • BATTERY:
    • Battery Voltage Range: 40-63VDC
    • Maximum Battery Current: 190A
  • Warranty: 1 Year
  • Gross Weight (kg): 22.00
  • Product Dimensions (W x D x H): 18.00cm x 10.00cm x 27.00cm

Additional information

Weight 22 kg
Dimensions 18 × 10 × 27 cm
